HD-AMB106 Home EV Charger - Portable, 5m Cable, 110-240V Input
Product Description
1. Portable household portable charger
2. After charging and use, it can be carried with the vehicle
3. The power of the device is as low as 3W in the on-machine state,
saving energy and low consumption
4. Three color charging indicator light, indicating charging
related values
Describe
The HD-AMB106 charging gun is a portable charging product that
meets the American AC power standards, with a rated maximum AC
output power of 7.4KW and a weight of approximately 3.4KG. It is
suitable for household new energy on-board chargers, outdoor
travel, emergency relief, and outdoor work.
General specifications
| Detailed parameters | Parameter Details |
| Name and model | HD-AMB106 |
Appearance structure | plug model | NEMA 5-15P |
| product type | Plug and Charge |
| Shell material | Gun Head - Control Box PC9330 |
Equipment size
| Gun head 230 * 98 * 58mm/control box 220 * 98 * 48mm [H * W * D] |
| Installation method | Floor/wall mounted |
| Install components | Wall mounted screw accessories |
| Wiring method | Up in and down out |
| Equipment weight | About 3.4KG |
| Cable specifications | 3*6mm²+0.75mm² |
| Cable length | 5 meters [supports customized line length] |
Electrical indicators | input voltage | AC240V |
| Input frequency | 50Hz/60Hz |
| maximum power | 7.4KW |
| output voltage | AC240V |
| Output current | 32A |
| standby power | 3W |
Environmental indicators | usage scenarios | Indoor/Outdoor |
| Working humidity | 5% -95% non condensing |
| working temperature | -30℃～+50℃ |
| Working altitude | <2000 meters |
| Protection level | Gun head IP67/control box IP67 |
| Cooling method | Natural cooling |
| Safety regulations and standards | SAEJ1772 |
| Flame retardant grade | UL94 V0 |
| Product Certification | UL,FCC |
Functional design | man-machine interface | LED indicator light |
| communication interface | / |
| Packaging specifications | Box gauge/weight | 505*505*298mm |
safety design
| Undervoltage protection, overvoltage protection, overload
protection, overcurrent protection, over temperature protection,
leakage protection, grounding protection, lightning protection,
electrostatic protection, flame retardant protectionretardant
protection |
Matters needing attention
1. Do not put the product into water!
2. Do not heat the product or approach a fire source! Do not
disassemble or modify the product without authorization! Do not
forcefully strike the product! otherwise
It may cause other hazards such as overheating, short circuit,
fire, functional failure, and shortened lifespan of the battery.
3. Disassembly and assembly prohibited
4. It is prohibited to use non dedicated vehicles for charging, as
it may cause danger;
5.if there is leakage, do not directly touch the leakage. The
leaked electrolyte can cause skin discomfort. In case the
electrolyte enters the eyes, rinse with clean water as soon as
possible, do not rub the eyes, and promptly seek medical attention.
Application
Suitable for American standard new energy vehicle home emergency
electricity, outdoor travel, emergency relief, outdoor work and
other occasions, charging anytime and anywhere.

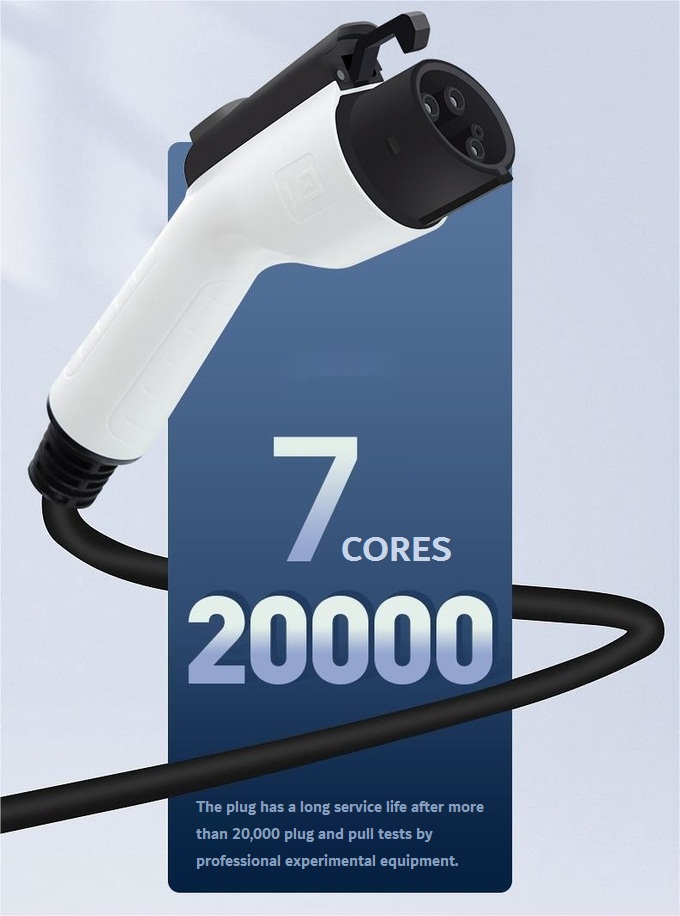

7-hole gun head integrated molding
The pin is made of copper alloy with silver plating on the surface,
greatly improving conductivity. The top of the gun head is made of
thermoplastic plastic, which has good heat resistance and
insulation performance.
