HD-OB101 Portable Home EV Charger - 8A-16A, 3.5kW, Low-Energy
Standby
Product Description
1. Portable household portable charger
2. After charging and use, it can be carried with the vehicle
3. When the device is in standby mode, the power is as low as 3W,
saving energy and low consumption
4. Three color charging indicator light, indicating charging
related values
5. Numerical screen display, displaying real-time charging data of
the charging gun
6.8A-10A-13A-16A current gear adjustment, can be set to 0h-8h
reservation charging function
Describe
The HD-OB101 charging gun is a portable charging product that
complies with the European Union's AC power consumption standards,
with a rated maximum AC output power of 3.5KW and a weight of
approximately 2KG. It is suitable for household new energy on-board
chargers, outdoor travel, emergency relief, outdoor work, and other
occasions.
General specifications
| Detailed parameters | Parameter Details |
| Name and model | HD-OB101 |
Appearance structure | plug model | 16A European standard plug |
| product type | Plug and play charging/scheduled charging/current regulation |
| Shell material | Gun Head - Control Box PC9330 |
Equipment size
| Gun head 240 * 98 * 70mm/control box 220 * 80 * 70mm [H * W * D] |
| Installation method | Floor/wall mounted |
| Install components | Wall mounted screw accessories |
| Wiring method | Up in and down out |
| Equipment weight | About 2KG |
| Cable specifications | 3*2.5 mm² +0.75mm² |
| Cable length | 5 meters [supports customized line length] |
Electrical indicators | input voltage | AC230V |
| Input frequency | 50Hz/60Hz |
| maximum power | 3.5KW |
| output voltage | AC230V |
| Output current | 8A-10A-13A-16A |
| standby power | 3W |
Environmental indicators | usage scenarios | Indoor/Outdoor |
| Working humidity | 5% -95% non condensing |
| working temperature | -30℃～+50℃ |
| Working altitude | <2000 meters |
| Protection level | Gun head IP67/control box IP67 |
| Cooling method | Natural cooling |
| Safety regulations and standards | SAEJ1772 |
| Flame retardant grade | UL94 V0 |
| Product Certification | TUV,CE,CB |
Functional design | man-machine interface | LCD 1.3 inch display screen |
| communication interface | / |
| Packaging specifications | Box gauge/weight | 505*505*298mm |
safety design
| Undervoltage protection, overvoltage protection, overload
protection, overcurrent protection, over temperature protection,
leakage protection, grounding protection, lightning protection,
electrostatic protection, flame retardant protectionretardant
protection |
Application
Suitable for charging new energy vehicles anytime and anywhere for
emergency electricity use in households, outdoor travel, emergency
relief, outdoor work, and other occasions.

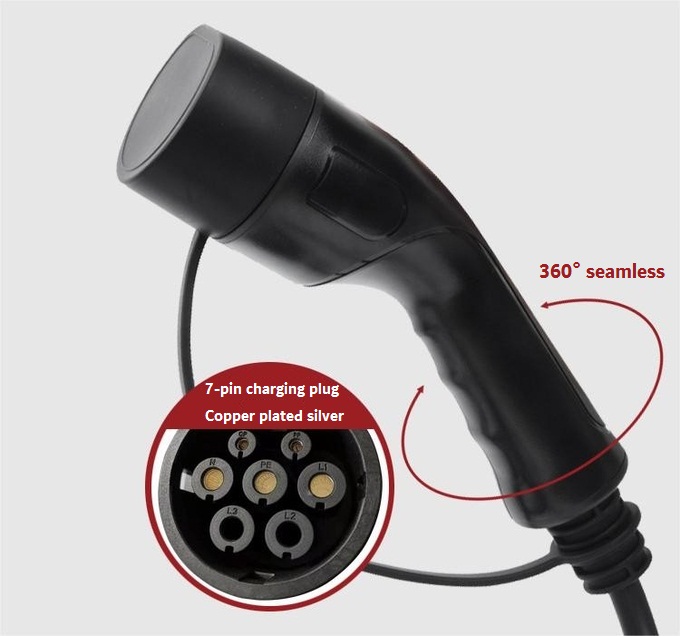

European standard charging gun head
IP66 rating - The shell is completely resistant to external
intrusion and can safely prevent dust from entering. When subjected
to strong waves or strong water spray, the water intake of the
electrical appliances does not reach harmful effects.
360 ° seamless
7-pin charging plug
Copper plated silver
