DESCRIPTION
Quick Details
1. Portable household portable charger
2. After charging and use, it can be carried with the vehicle
3. The power of the device is as low as 3W in the on-machine state,
saving energy and low consumption
4. Three color charging indicator light, indicating charging
related values
5. Numerical screen display, displaying real-time charging data of
the charging gun
6.8A-10A-13A-16A-32A current range is for price adjustment, and
0h-8h reservation charging function can be set
Describe

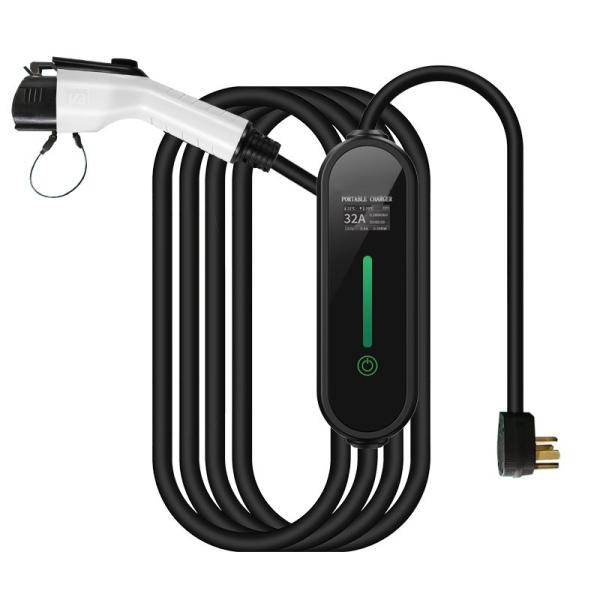

HD-AMB103 charging gun is a portable charging product that meets
the American AC power standards, with a rated maximum AC output
power of 11.5KW and a weight of approximately 4.1KG. It is suitable
for household new energy on-board chargers, outdoor travel,
emergency relief, and outdoor work.
General specifications
| detailed parameters | Parameter Details |
| Name and model | HD-AMB103 |
Appearance structure | Plug model | NEMA 14-50P |
| product type | Plug and play charging/scheduled charging/current regulation |
| Shell material | Gun head - Control Box PC9330 |
| Equipment size | Gun head240*98*58mm/control box 220*80*70mm[H*W*D] |
| Installation method | Floor/wall mounted |
| Install components | Wall mounted screw accessories |
| Wiring method | Up in and down out |
| Equipment weight | About 4.1KG |
| Cable specifications | 8AWGx2C+10AWG+18AWG |
| Length | 5 meters [supports customized line length] |
Electrical specifications | INPUT VOLTAGE | AC240V |
| input frequency | 50Hz/60Hz |
| maximum power | 11.5KW |
| Output voltage | AC240V |
| output current | 8A-10A-13A-16A-32A |
| standby power | 3W |
Environmental Indicators | Usage scenario | Indoor/Outdoor |
| Working humidity | 5% -95% non condensing |
| operation temperature | -30℃～+50℃ |
| Working altitude | <2000 meters |
| protection grade | Gun head IP67/control box IP67 |
| Cooling method | natural cooling |
| Safety standard | SAEJ1772 |
| Flame retardant grade | UL94 V0 |
| Product Certification | UL,FCC |
functional design | interface | LCD 1.3 inch display screen/LED indicator light |
| communication interface | / |
| Packaging specifications | Box gauge/weight | L*W*H:410*410*125mm[about 4.9KG] |
| safety design | Undervoltage protection, overvoltage protection, overload
protection, overcurrent protection, over temperature protection,
leakage protection, grounding protection, lightning protection,
electrostatic protection, flame retardant protection |
Matters needing attention
1. Do not put the product into water!
2. Do not heat the product or approach a fire source! Do not
disassemble or modify the product without authorization! Do not
forcefully strike the product! Otherwise, it may cause the battery
to overheat, short circuit, catch fire or malfunction, shorten its
lifespan, and other hazards.
3. Disassembly and assembly prohibited.
4. It is prohibited to use non dedicated vehicles for charging, as
it may cause danger.
5. If there is leakage, do not directly touch the leakage. The
leaked electrolyte can cause skin discomfort. In case the
electrolyte enters the eyes, rinse with clean water as soon as
possible, do not rub the eyes, and promptly seek medical attention.
Application
Suitable for charging anytime and anywhere in situations such as
emergency electricity for American standard new energy vehicles,
outdoor travel, emergency relief, and outdoor work.
Frequently Asked Questions
1.Can I place a sample order for a charging gun?
2. What is the delivery time?
3.Is there a minimum order quantity limit for charging gun orders?
4. How to transport the goods and how long will it take for
delivery?
5.How to process charging gun orders? (Requirements, quotations,
samples, deposits, production)
6. Is it possible to label?
7. How long is the warranty period?
8. How to handle faults?
