Portable Outdoor Power Station - Wall Mount & Column Mount Charging
Stations
Product Description
1. Wall mounted and column mounted charging stations
2. Charging, charging, security and anti-theft measures
3. When the device is in standby mode, the power is as low as 3W,
saving energy and low consumption
4. Three color charging indicator light, indicating charging
related values
5. Numerical screen display, displaying real-time charging data
related to the charging station
6. Optional gold and silver glass panels, supporting customized
panels
Describe
The HD-OB206 charging gun is a portable charging product that
complies with the European Union's AC power consumption standards,
with a rated maximum AC output power of 22KW and a weight of
approximately 6.2KG. It is suitable for wall mounted household new
energy charging stations and is convenient and fast.
General specifications
| Detailed parameters | Parameter Details |
| Name and model | HD-OB206 |
Appearance structure | plug model | Separate wiring without plug |
| product type | Swipe card activation
|
| Shell material | Gun Head - Control Box PC9330 |
Equipment size
| Gun head 230 * 98 * 70mm/control box 268 * 228 * 100mm [H * W * D] |
| Installation method | Pillar/wall mounted |
| Install components | Wall mounted screw accessories [can be installed with columns] |
| Wiring method | Up in and down out |
| Equipment weight | About 6.2KG |
| Cable specifications | 5*6mm² +0.75mm² |
| Cable length | 5 meters [supports customized line length] |
Electrical indicators | input voltage | AC380V |
| Input frequency | 50Hz/60Hz |
| maximum power | 22KW |
| output voltage | AC380V |
| Output current | 32A |
| standby power | 3W |
Environmental indicators | usage scenarios | Indoor/Outdoor |
| Working humidity | 5% -95% non condensing |
| working temperature | -30℃～+50℃ |
| Working altitude | <2000 meters |
| Protection level | Gun head IP67/control box IP67 |
| Cooling method | Natural cooling |
| Safety regulations and standards | SAEJ1772 |
| Flame retardant grade | UL94 V0 |
| Product Certification | TUV,CE,CB |
Functional design | man-machine interface | LCD 1.3 inch display screen/LED indicator light |
| communication interface | / |
| Packaging specifications | Box gauge/weight | 505*505*298mm |
safety design
| Undervoltage protection, overvoltage protection, overload
protection, overcurrent protection, over temperature protection,
leakage protection, grounding protection, lightning protection,
electrostatic protection, flame retardant protectionretardant
protection |
Application
Suitable for charging new energy vehicles anytime and anywhere for
emergency electricity use in households, outdoor travel, emergency
relief, outdoor work, and other occasions.

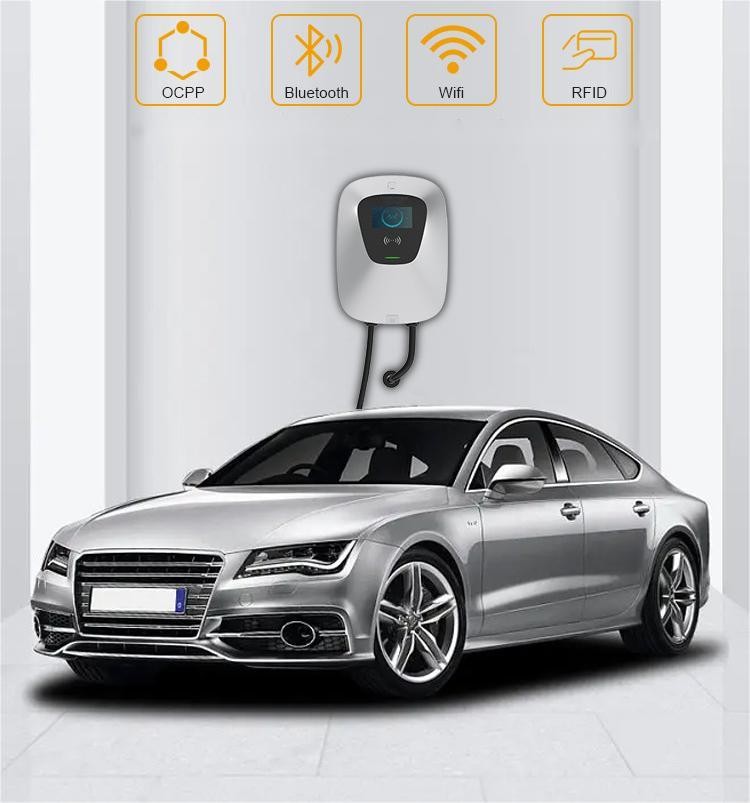

OCPP protocol
Bluetooth link
WiFi link function
RFID card swipinginput voltage
